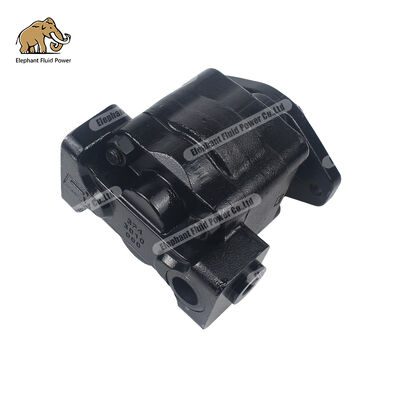

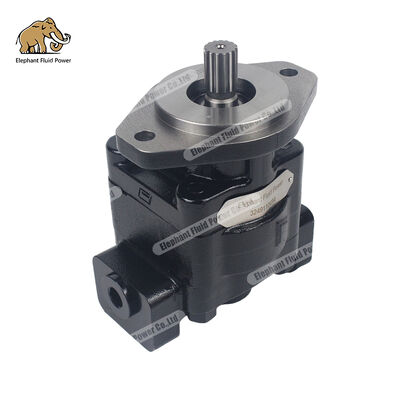

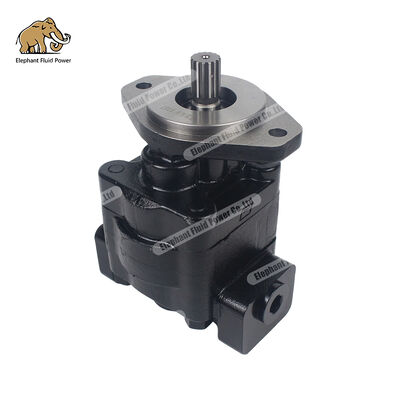

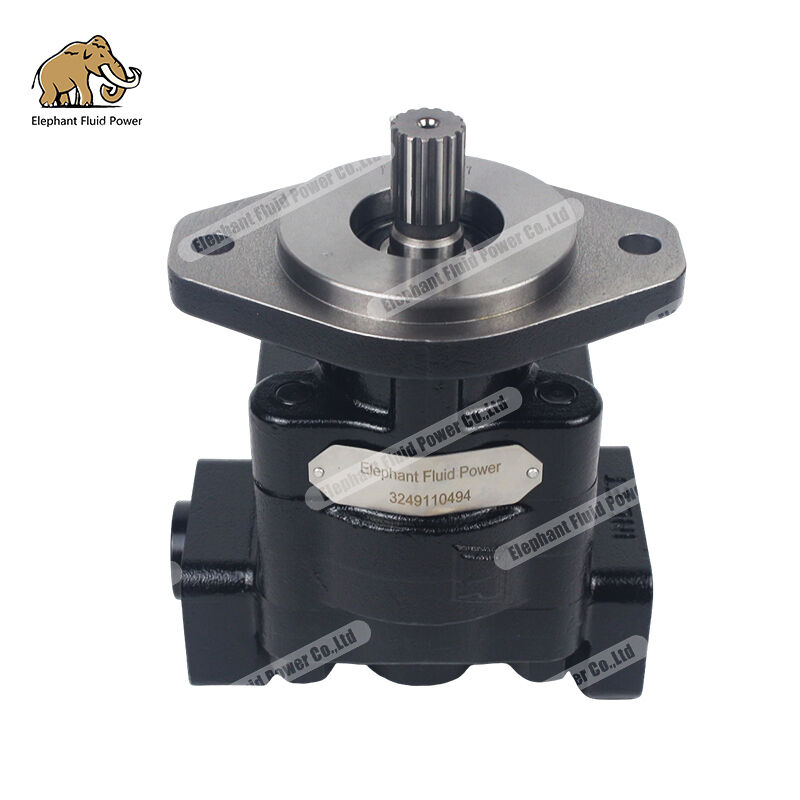

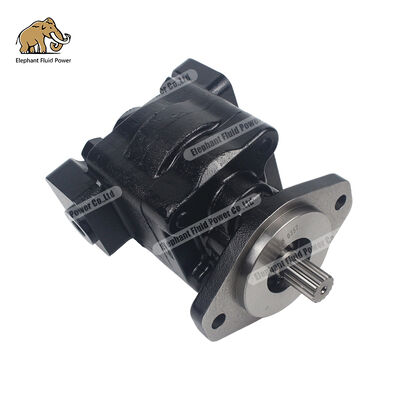

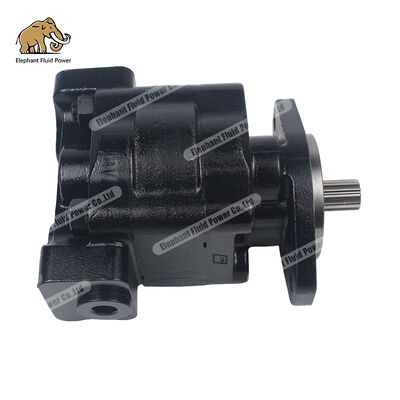

3249110494 Parker Replacement Hydraulic Pump

3249110494 Parker Replacement Hydraulic Pump

I. Overview and Correct Usage of Hydraulic Pump 3249110494

The 3249110494 is an open-loop gear pump compatible with the Parker PGP330 series, widely used in various mobile and industrial applications such as construction machinery, agricultural equipment, and industrial hydraulic systems. The Parker PGP330 series is a mature cast iron gear pump product line, featuring a compact and reliable three-piece cast iron structure, widely recognized by users worldwide. This pump is responsible for providing stable hydraulic power output to the actuators in the overall hydraulic system, and is a core component ensuring the continuous and efficient operation of the equipment.

PGP330 Series Technical Parameters:

Key Points for Correct Installation and Use:

Preparation Before Installation:

Confirm that the system pressure has been completely released and disconnect the power source. Check that the pump body is intact and that the inlet and outlet dust covers are undamaged to prevent contaminants from entering the pump chamber. Clean the inner walls of the pipeline before installation to ensure no foreign matter remains.

Installation Requirements:

The pump can be installed using a support or flange, sharing a rigid foundation support with the prime mover to ensure sufficient rigidity. Use a flexible coupling to connect the pump shaft and the prime mover output shaft. Direct installation of pulleys or gear drives on the hydraulic pump shaft is strictly prohibited. The coaxiality of the pump shaft and the prime mover output shaft should be controlled within 0.05 mm.

Pipeline Layout:

The suction pipe should be as short and straight as possible, minimizing unnecessary bends. The pipe diameter should meet the specified requirements. The suction port must be below the oil level in the tank and equipped with a coarse filter with a nominal flow rate not less than twice the pump flow rate. The drain port must be a separate, direct return to the oil tank, with a return back pressure ≤0.5 bar.

No-load test run:

Before starting, inject clean hydraulic oil into the pump through the drain port on the casing to purge internal air. After starting the hydraulic pump, run it under no-load for approximately 10–30 minutes, especially in low temperatures, to fully warm it up. Only apply load after the hydraulic circuit circulation is normal.

Test run monitoring:

During the initial operation of a new pump, closely monitor its operation and check for abnormal noise, vibration, or temperature rise. The oil cleanliness must meet ISO 18/16/13 or higher standards, and the oil condition should be checked regularly.

Regular maintenance:

Check the oil condition and filter every 500 hours, and replace the hydraulic oil and filter element every 1,000 hours. Regularly check the condition of the seals, and replace them promptly if aging or leakage is found. Pumps that have been out of service for more than 6 months must be overhauled before being put back into use.

II. Common Fault Diagnosis and Repair Methods

During operation, Parker hydraulic pump faults are often related to oil contamination, poor oil suction, improper pressure adjustment, and wear of parts. The following are common faults and system troubleshooting methods:

Professional diagnostic recommendations:

Oil cleanliness, viscosity, and oil level are the root causes of 80% of failures and should be prioritized for testing. Troubleshooting should follow the "external first, internal later" principle—first check external pipelines, valves, motors, etc., then disassemble the pump body to avoid blindly disassembling the machine. When a fault occurs, key data such as pressure, flow rate, and oil temperature should be recorded to facilitate accurate problem localization. For gear pump repair, the main wear points of the gears are the drive shaft and bushing, the intermediate hole and pin of the driven gear, the pump housing cavity and gear, and the gear end face and pump cover.

III. Core Advantages of Our Factory's 3249110494 Replacement Hydraulic Pump

As a professional hydraulic pump manufacturer, our factory's Parker replacement hydraulic pumps possess the following core competitive advantages:

1. Performance comparable to the original manufacturer, stable and reliable quality

Utilizing advanced hydraulic technology and precision machining processes, high-quality alloy materials are selected, and key components are strengthened through heat treatment. The product operates stably under rated pressure (maximum 241 bar) and rated speed, maintaining reliable output even under high load and high frequency conditions.

1. Three-piece cast iron housing structure ensures pump rigidity and impact resistance, adapting to harsh mobile equipment and industrial application environments.

2. Strict Quality Control, 100% Factory Inspection:

Each product undergoes rigorous factory performance testing, including pressure testing, flow testing, leakage testing, and durability verification. The factory is ISO 9001 quality management system certified, with full traceability throughout the production process, ensuring a zero-defect rate for delivered products.

3. Perfect Compatibility, Ready to Use:

The product dimensions, mounting interface (SAE two-bolt flange), and performance parameters are fully matched to the original PGP330 series pumps, allowing for direct replacement installation without any modifications. The PGP330 series is suitable for high-load circulating mobile applications in construction, forestry, oil and gas, and other fields, and our products perfectly inherit this compatibility.

4. Significant Cost Advantage:

While ensuring product quality, our products are priced at only 30%–50% of original parts, helping customers significantly reduce procurement and maintenance costs. Gear pumps possess inherent advantages such as compact structure, reliable operation, low energy consumption, and high volumetric efficiency, which are further amplified by the cost advantages of Chinese manufacturing.

5. Stable Supply and Fast Delivery

Leveraging a mature supply chain and production system, standard orders are shipped within 3-7 days, and large-volume orders are delivered within 15-20 days. Global sea freight, air freight, and express logistics services are supported.

IV. What problems can I solve for distributors, OEM manufacturers, and repair service providers?

Distributor Partners

High Profit Margin:

Purchasing at 30%-50% of the price of original parts and selling at market prices results in profit margins far exceeding those of original parts.

Stable and Uninterrupted Supply:

Ample finished product inventory ensures no worries about stockouts affecting business. Our factory can provide customized inventory solutions based on the characteristics of the distributor's regional market.

Worry-Free After-Sales Service:

One-year warranty, professional technical support, and spare parts service ensure your customers' peace of mind.

Zero-Inventory Model Support:

Small-batch trial orders are accepted, with MOQ as low as 1-5 units, reducing your inventory pressure and capital tied up.

Technology Empowerment:

We provide distributors with product training, troubleshooting guidance, and after-sales maintenance support to help improve service capabilities.

OEM Manufacturer

Customization Services:

We support OEM/ODM private label customization, and can customize packaging and labeling according to your brand needs. Our factory can help customers meet market demands while maintaining brand uniqueness.

Strict Quality Control System:

Each batch of products comes with a complete factory inspection report, and quality is traceable throughout the entire process.

Bulk Purchase Discounts:

Enjoy tiered discounts for large-volume purchases; enjoy a 15% discount for orders of 50 pieces or more, and even better prices for long-term cooperation.

Collaborative Technology Development:

We can jointly develop optimized solutions for specific equipment, providing one-stop support services from design to mass production.

Speed ​​Response Advantage:

Relying on China's complete industrial chain, our factory can significantly shorten the raw material procurement cycle, achieving faster delivery response than European and American suppliers.

Repair Service Provider

Reduced Repair Costs:

Compared to original equipment manufacturer (OEM) parts, using our products can save end customers 50%–70% on repair costs, enhancing the competitiveness of your repair quotes.

Repair Solution Support:

We provide detailed repair manuals and troubleshooting guides for the Parker PGP330 series hydraulic pumps to help you improve repair efficiency.

Timely Parts Supply:

Urgent orders can be shipped within 24 hours, reducing equipment downtime and improving customer satisfaction.

Repair Kit Parts Supply:

 We provide repair kit parts such as seal repair kits, gears, bushings, and bearings to support your pump remanufacturing business.

Technical Training:

We provide gear pump repair technical training to help repair service providers build professional pump repair capabilities.

V. Welcome to choose us in China for procurement

Are you still troubled by the high price and long delivery time of Parker hydraulic pumps? Come to China and find us!

Our Commitment:

Same Quality, Lower Price

Same Specifications, In Stock

Same Service, Shorter Delivery Time

Why Choose to Sourceive from China:

China has developed into a core base for global hydraulic pump manufacturing. Chinese hydraulic component manufacturers possess a cost advantage of 18%–30%, along with flexible customization capabilities and a rapid-response delivery system. Compared to European and American suppliers, sourcing hydraulic pumps of the same quality from China can reduce overall costs by 40%–60%. In 2024, the total import and export volume of China's hydraulic industry reached US$4.07 billion, and Chinese-made hydraulic products are occupying an increasingly important position in the global market.

Parer, as a leading brand in the global hydraulics field, has multiple manufacturing bases and R&D centers in China, including Tianjin and Shanghai, deeply integrated into China's hydraulic industry chain. As a local Chinese hydraulic pump manufacturer, our factory fully benefits from this complete industrial ecosystem, enabling us to provide the same high-quality products at more competitive prices.

Contact Us:
